DN15 DN20 Volumetric Brass Cold Water Meter R160

Name: DN15 DN20 Volumetric Brass Cold Water Meter R160
Brand: Changde
Price: 1 USD

Wholesale DN15 DN20 Volumetric Brass Cold Water Meter R160 from china suppliers

warranty : 1 year, 1 year

customized support : OEM

Place of Origin : Hunan, China

Brand Name : Changde

Model Number : LXH15~20

Product name : volumetric brass cold water meter R160

Certificate : ISO4064, ISO9001:2015

Installation : any position

Water temperature : ≤30℃

Working pressure : ≤1.6MPa

Normal Size : 15mm~20mm

Color : Blue, Gold

Model : LXH-15,LXH-20

Type : Volumetric water meter

Contact Now

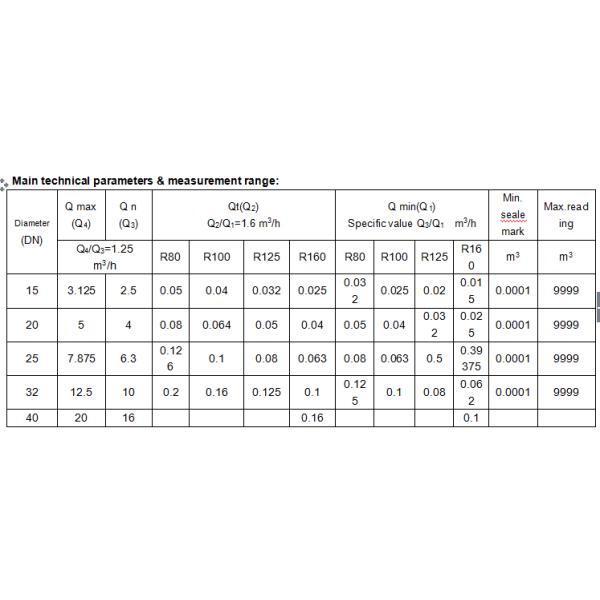

Technical Data

Brief introduction:

The volumetric water meter is mainly composed of a meter case, a counting mechanism, a piston metering mechanism, etc. The counting mechanism adopts the form of liquid seal, and the reading part of the word wheel is sealed with the anti-corrosive liquid and keeps the reading part clear for a long time, separated from the use of water.Sealing liquid has the characteristics of anti-freezing, anti-fog, anti-fouling and so on.

Characteristic:

With piston metering structure, the metering of water meter is more accurate, the starting flow rate is 3-4L/H, measuring range is more wider, R160.Horizontal, vertical optional installation.

Working condition(s):

Water temperature 0.1~30℃, working pressure≤1MPa.

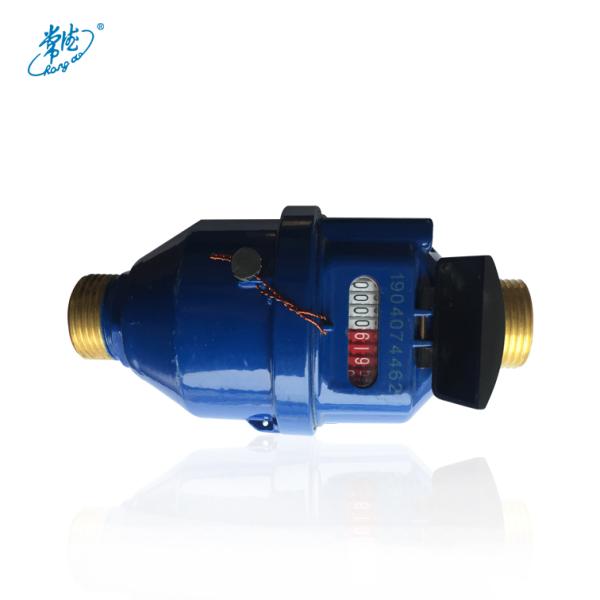

Figurative diagram:

DN15 DN20 Volumetric Brass Cold Water Meter R160

Allowable error of indication & error Curve:

From Q1 inclusive up to but excluding Q2 is ± 5%;

From Q2 inclusive up to and including Q4 is ± 2%;
